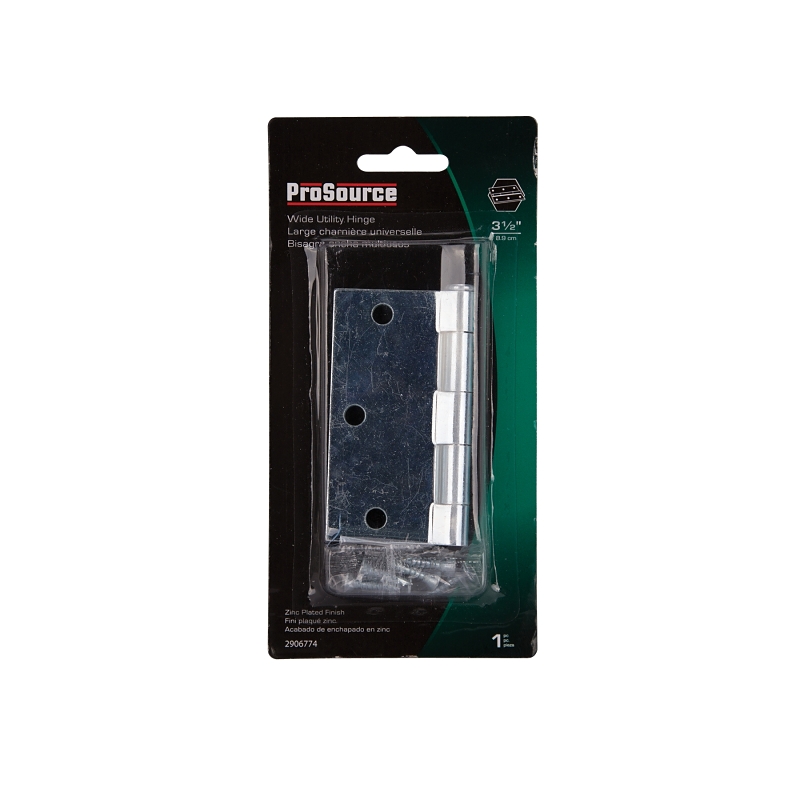

ProSource LR-041-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting
- Color: Silver
- Dimensions: 3-1/2 in L x 3-1/2 in W
- Door Leaf Height: 3-1/2 in
- Door Leaf Thickness: 2.3 mm
- Door Leaf Width: 1-1/2 in
- Model #: LR-041-PS
- UPC #: 045734647282
- SKU: 2906774
Your shopping list will be used for pickup in-store
Product Details
The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a five knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.Key Features
- Steel with zinc plated finish
- Square corner
- Five knuckles, removable pin
- For general utility use on lightweight doors
Item Specifications
| Color | Silver |
|---|---|
| Dimensions | 3-1/2 in L x 3-1/2 in W |
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 2.3 mm |
| Door Leaf Width | 1-1/2 in |
| Finish | Zinc |
| Hole Spacing | 1-3/8 in |
| Includes | Mounting Hardware |
| Knuckle Diameter | 6 mm |
| Knuckle Length | 21 mm |
| Material | Steel |
|---|---|
| Mounting Hole Diameter | 7 mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 5.2 mm |
| Pin Type | Removable |
| Range of Motion | 180 deg |
| Suitable for | Lightweight Doors |
| Weight Capacity | 70 (Pair) lb |
